Details

【Matrix 600 Algorithm for 600ft Transmission】The Matrix 600 Algorithm builds the encrypted wireless connection between transmitter and receiver. It re-engineers the transmission protocol and transit video through HDMI or SDI, allowing the Matrix 600s system to achieve audio and video transmission synchronization over 600 feet with a latency of only 0.08s.

【Support Gears with SDI or HDMI】The Matrix 600s supports both HDMI and SDI input and output. It is compatible with various devices like camcorders, DSLR cameras, Field Monitors, etc. It can be mounted on other fixtures by using two 1/4” threads. However, if you only use HDMI transmission, you can also choose another type of long range wireless video transmission which focuses on HDMI.

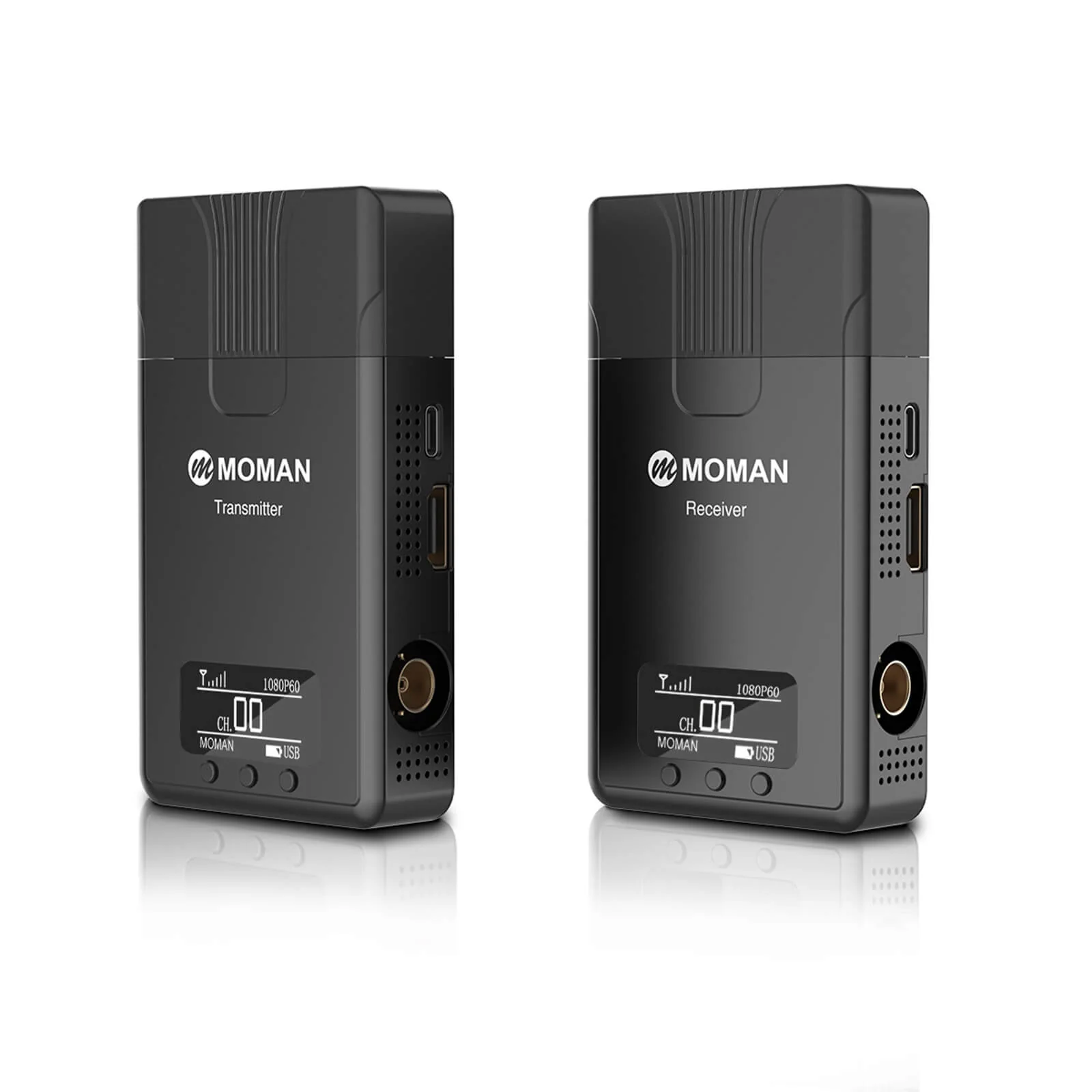

【Antennas Integration Technology】The Matrix 600s combines antennas within the body of the wireless HDMI transmitter and receiver, making wireless HDMI applications easier to operate, especially for users of gimbal stabilizers.

【Zero Noise design for Professional Filming】While the fan is beneficial for long-term filming, the noise it produces can annoy filmmakers. The Matrix 600s replaces the fan with a natural heat distribution structure in the wireless transmitter and receiver, delivering a sensible temperature of less than 48°C and a Zero Noise Filming experience.

【Low Power Consumption】The power consumption of the Moman Matrix 600s is less than 3.5w because of the enhanced efficiency of the Matrix 600 algorithm and fanless design. It is half of the consumption of leading wireless HDMI transmission systems and provides two times better battery life. Both the Transmitter and the Receiver are powered by USB Type-C or NP-F batteries.

Specifications

Transmitter (TX)
Interface:	HDMI Input/SDI Output
Powered By:	5V DC/NP-F Battery
Power Consumption:	<5W
HDMI Input:	720P@50/60Hz; 1280*1024@60Hz; 1080I@50/60Hz; 1080P@24/25/30/50/60Hz
SDI Input:	720P@50/60Hz; 1080I@50/59.94/60Hz; 1080P@23.98/24/25/29.97/30/50/59.94/60Hz
Weight:	160g
Size:	11363.520.5mm
Transmission Frequency Band:	5GHz
Transmit Power:	21dBmMAX
Transmission Delay:	80ms, Noisy RF environment 120ms typical
Receiving Sensitivity:	-80dBm

Receiver (RX)
Interface:	HDMI Output/SDI Output
Powered By:	5V DC/NP-F Battery
Power Consumption:	<4.5W
HDMI Output:	720P@50/60Hz; 1280*1024@60Hz; 1080I@50/60Hz; 1080P@24/25/30/50/60Hz
SDI Output:	720P@50/60Hz; 1 080I@50/60Hz; 1080P@24/25/30/50/60Hz
Weight:	160g
Size:	11363.520.5mm
Transmission Frequency Band:	5GHz
Transmit Power:	21dBmMAX
Transmission Delay:	80ms, Noisy RF environment 120ms typical
Receiving Sensitivity:	-80dBm
