Moman Matrix 600s Wireless HDMI SDI Transmission System
Details
【Matrix 600 Algorithm for 600ft Transmission】The Matrix 600 Algorithm builds the encrypted wireless connection between transmitter and receiver. It re-engineers the transmission protocol and transit video through HDMI or SDI, allowing the Matrix 600s system to achieve audio and video transmission synchronization over 600 feet with a latency of only 0.08s.

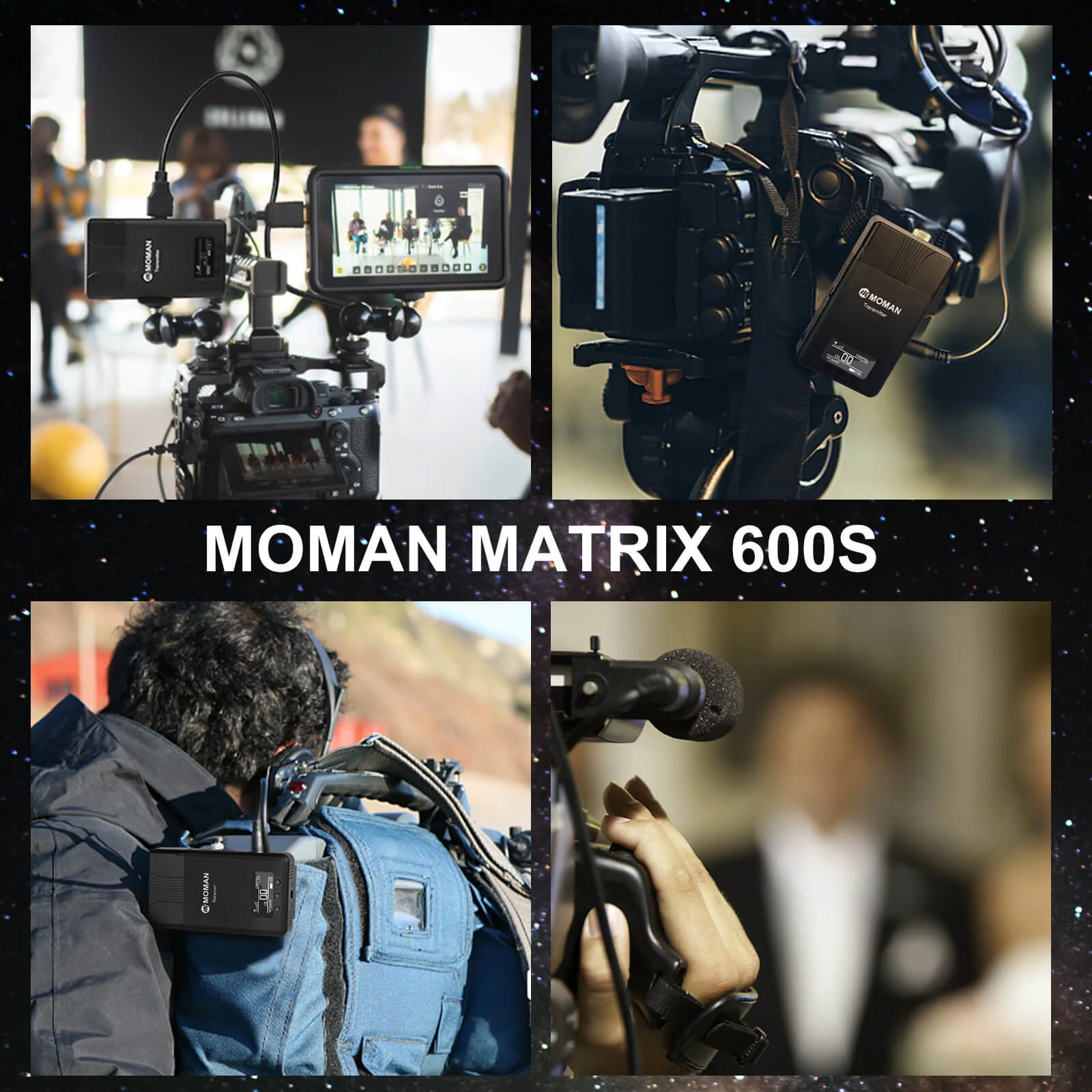

【Support Gears with SDI or HDMI】The Matrix 600s supports both HDMI and SDI input and output. It is compatible with various devices like camcorders, DSLR cameras, Field Monitors, etc. It can be mounted on other fixtures by using two 1/4” threads. However, if you only use HDMI transmission, you can also choose another type of long range wireless video transmission which focuses on HDMI.
【Antennas Integration Technology】The Matrix 600s combines antennas within the body of the wireless HDMI transmitter and receiver, making wireless HDMI applications easier to operate, especially for users of gimbal stabilizers.
【Zero Noise design for Professional Filming】While the fan is beneficial for long-term filming, the noise it produces can annoy filmmakers. The Matrix 600s replaces the fan with a natural heat distribution structure in the wireless transmitter and receiver, delivering a sensible temperature of less than 48°C and a Zero Noise Filming experience.
【Low Power Consumption】The power consumption of the Moman Matrix 600s is less than 3.5w because of the enhanced efficiency of the Matrix 600 algorithm and fanless design. It is half of the consumption of leading wireless HDMI transmission systems and provides two times better battery life. Both the Transmitter and the Receiver are powered by USB Type-C or NP-F batteries.
Specifications
| Transmitter (TX) | |
| Interface: | HDMI Input/SDI Output |
| Powered By: | 5V DC/NP-F Battery |
| Power Consumption: | <5W |
| HDMI Input: |
720P@50/60Hz; 1280*1024@60Hz; 1080I@50/60Hz; 1080P@24/25/30/50/60Hz |
| SDI Input: |
720P@50/60Hz; 1080I@50/59.94/60Hz; [email protected]/24/25/29.97/30/50/59.94/60Hz |
| Weight: |
160g |
| Size: |
113*63.5*20.5mm |
| Transmission Frequency Band: | 5GHz |
| Transmit Power: | 21dBmMAX |
| Transmission Delay: | 80ms, Noisy RF environment 120ms typical |
| Receiving Sensitivity: | -80dBm |
| Receiver (RX) | |
| Interface: | HDMI Output/SDI Output |
| Powered By: | 5V DC/NP-F Battery |
| Power Consumption: | <4.5W |
| HDMI Output: |
720P@50/60Hz; 1280*1024@60Hz; 1080I@50/60Hz; 1080P@24/25/30/50/60Hz |
| SDI Output: |
720P@50/60Hz; 1 080I@50/60Hz; 1080P@24/25/30/50/60Hz |
| Weight: |
160g |
| Size: |
113*63.5*20.5mm |
| Transmission Frequency Band: |
5GHz |
| Transmit Power: |
21dBmMAX |
| Transmission Delay: |
80ms, Noisy RF environment 120ms typical |
| Receiving Sensitivity: |
-80dBm |
Tutorials
The best budget wireless video HDMI SDI transmission system in 2021? | Moman matrix 600s
Downloads
